Every NTS product was designed to address challenges where a mission's requirements could not be solved with existing technology - a testament to our team's commitment to every customer. Click on the MANTLE and CORE logos to learn more about our flagship products.

A heart made out of sn tsn tsn tsn tsn tsn tsn
A circle made up of lots of letters and numbers

JEFF-K

JOINT ENTERPRISE FORWARD FLYAWAY KIT

The JEFF-K was designed to provide industry best small-form-factor (SFF) compute and network capability for deployed Air Mobility Command Intelligence units. Each kit is equipped with a three-enclave stack to support NIPR, SIPR and TS / JWICS communications.


CUSTOMIZED FOR DEPLOYMENT: Packaged in a lightweight, rugged, waterproof case with wheels and an adjustable handle, the customized chassis has a single power cable and secures all equipment for immediate operations.


AUTOMATED CONFIGURATION: Using the NTS MANTLE Edge Activation Platform (EAP), Users will be able to provision & configure JEFF-K and all associated hardware using customized automation, saving precious hours (or even days) while ensuring all systems are operating and integrated seamlessly.

A bunch of black boxes with numbers on them

  • MOBILITY & PACKAGING

    Each kit comes with with a ruggedized Quick Response Kit (QRK) to support rapid deployment.


    The QRK consists of a lightweight, rugged, waterproof case with wheels and a adjustable handle for easy transport.


    The 5-slot chassis provides single cable power input (AC or DC), space for the routers and server module, a HAIPE encryption device / sled, and a bracket for the secondary HAIPE to be mounted on top of the chassis.


    With a built in automation tool, the kit can be set up and running within minutes of arriving at the AMC team’s operating location.

  • ROUTING CAPABILITY

    Each JEFF-K contains three (3) small router modules to support NIPR, SIPR and TS / JWICS requirements.


    2 x GigE (SFP or RJ24) WAN Ports and 4 x GigE RJ45 Ports of PoE LAN access.


    This architecture provides flexible transport, configuration, and setup options.


    5.3" x 7.1" x 1.6" and 2.4 lbs

  • COMPUTE CAPABILITY

    Each JEFF-K contains one (1) small server module.


    In-theater computing, communications, vehicle mount, early entry or forward operating base / remote deployments.


    6-Core Xeon E Processor, 96 GB ECC Memory, Single 2.5" SSD Drive Bay, 5-Port I/O: 5 x GigE (2 PoE)


    5.3" x 7.1" x 1.7" and 2.7 lbs

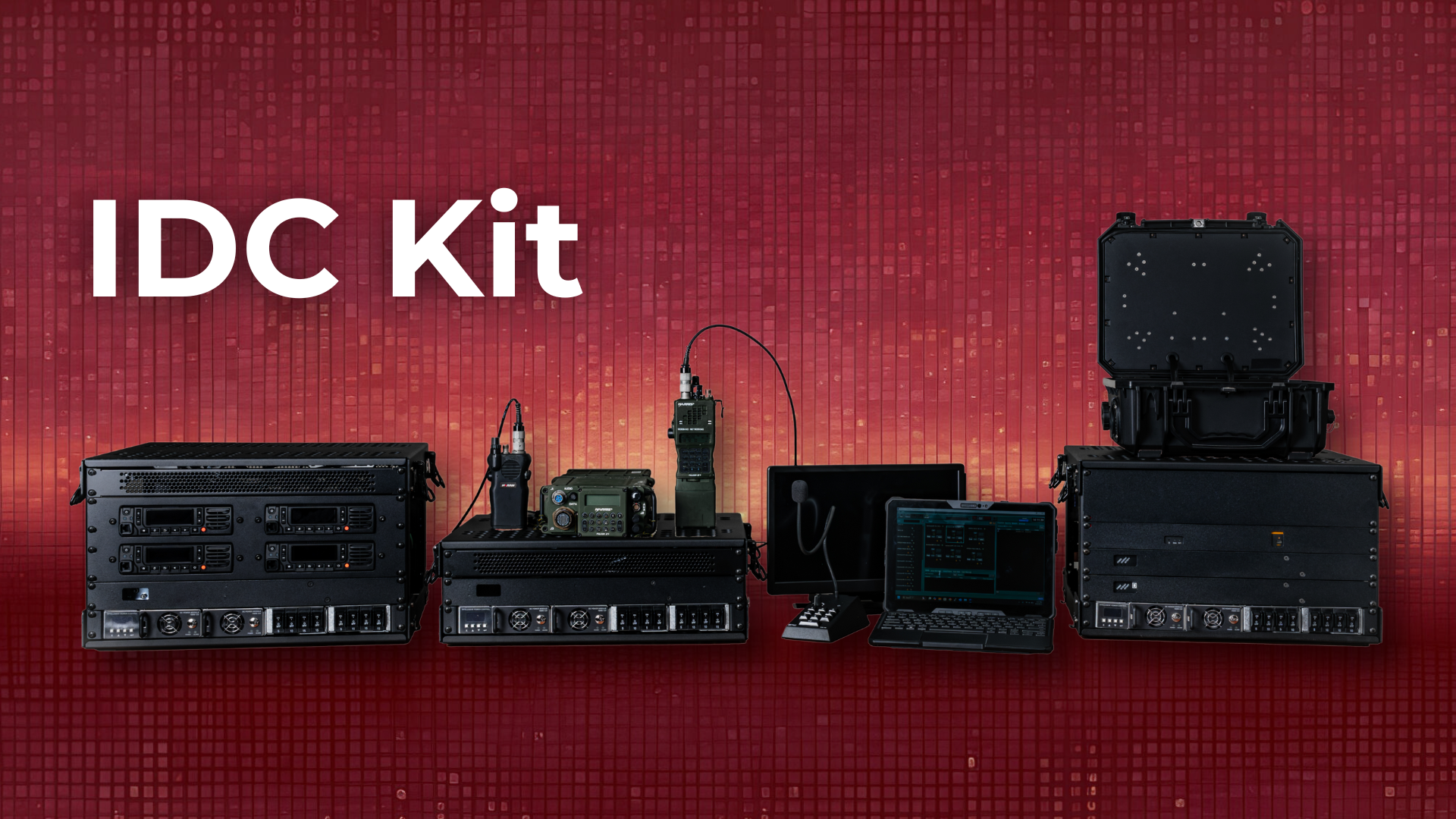

IDC KIT

INTEGRATED DISPATCH CONSOLE

The Integrated Dispatch Console (IDC) is a hardware radio dispatch system designed to be deployed to the edge with the capability of networked or standalone operation. The IDC consolidates any radio system from Tactical to Land Mobile Radio (LMR) onto a common operating platform and application.


VERSATILITY: All power supplies and gateways are identical from core module to radio module, facilitating seamless field swaps with common spares. Each kit is compatible with the worldwide voltage input of 110-240 VAC 50/60Hz. The system requires only a one-person lift as the entire kit is contained in a wheeled case for transport.


SCALABILITY: The product's hybrid design allows for the system to be used as a deployable kit or stacked in a rack footprint for use within a permanent installation. New features provide for limited use without a server and the ability to repurpose two radios from one module for use as a repeater.

A stack of servers sitting on top of each other on a white background.

  • KEY CAPABILITIES

    Ability to separate radios for RF isolation while keeping TX line runs short.


    IDC Core can be installed in a secure space away from RF Transmitters.


    Adaptable footprint of 4 x radios per kit allow users to deploy and install only what is necessary for every mission.

  • SPECIFICATIONS

    Computer Aided Dispatch system that can be used as a Fly-Away or installed at a fixed site with no modifications or re-racking


    Kenwood NX5000 series chosen as primary P25 radio platform due to physical size, cost and integration capability


    System has three layers of operational redundancy  - (1) Offline Serverless, (2) Offline Local Management Sever, (3) Online Remote Management Server


    Radio gateways facilitate a user's ability to perform adjustments at the edge


    All system modules interconnect via single mode or multi-mode fiber


    Radio modules can be collocated or physically separated for RF isolation (groups of 4)


    Full Stack with One (1) Core, Twelve (12) Kenwood LMR Radios and the Green radio interface module = 32U

  • v3 MISSION PROFILES

    As a deployable unit, the IDCv3 is an appliance unrestricted by radio type or manufacturer. The system provides an all-in-one Computer Aided Dispatch (CAD) system that can be applied to Local & Federal Law Enforcment or DoD customers to provide command and control of multiple systems for a wide variety events where radio systems are employed:


    - Any National Special Security Event (NSSE)

    - Forward operating location

    - Joint law enforcement operations


    The modularity of the IDCv3 would allow for users to initially deploy a 4-channel radio module as an airline checked bag (serverless).  The Core and CAD can then be added at a later date.


    In a fixed configuration, the IDCv3 can be used as a permanent ingest at Resident or Field Offices.  While providing local PTT capability and routing audio from radio systems to a common command center,

    the IDCv3 will integrate P25, Tactical, DMR, Tetra, and Netted Iridium radio networks based on the common classification of these networks.

DROP-SERIES

SIGNAL EMULATOR SYSTEM

The Drop-Series of portable, self-contained, and expendable equipment provides realistic environments to conduct advanced testing, experimentation, and training for Radio Frequency (RF) devices. These devices, which are modular and reconfigurable, can emulate radar, Internet of Things, communications, and other electronic signals, while offering a compact footprint and lightweight design. Complex RF environments can be constructed and networked with easy operational setup, and the equipment is weather-resistant and powered by battery, AC, or solar options. The Drop Hat system, designed to operate in remote areas, emulates radars and is remotely controlled, providing unit status feedback and enabling centralized multi-unit control. Additionally, the system is designed for flexibility and can be remotely deliverable by Unmanned Aerial System or hand carried.

A black case with a cell phone and a raspberry pi inside of it.

  • ANTENNAE & RADIO FREQUENCIES

    Primary Antenna:

    700 MHz to 7.125 GHz omni-directional* (2-5 dBi)


    Optional Antennae:

    900 MHz to 6 GHz directional spiral (3 dBi) with antenna coupler or switch


    Frequencies:

    - 70 MHz to 6 GHz*

    - 56 MHz Instantaneous Bandwidth*

    - 2 to 6 GHz amp (44 dBm Psat)*


    * Reconfigurable

  • REMOTE CONTROL LINKS

    - Lora WAN with separate antenna

    - Optional cellular modem

    - Control Mechanisms:

    - Raspberry Pi

    - Web-based operator control

    - Multi-unit centralized control

  • SOFTWARE CONTROL & POWER SUPPLY

    Control:

    - On/Off

    - Waveform Parameters

    - Output Power

    - Duty Cycle Parameters


    Power Supply:

    - 10 Ahr Batteries*


    * Reconfigurable
